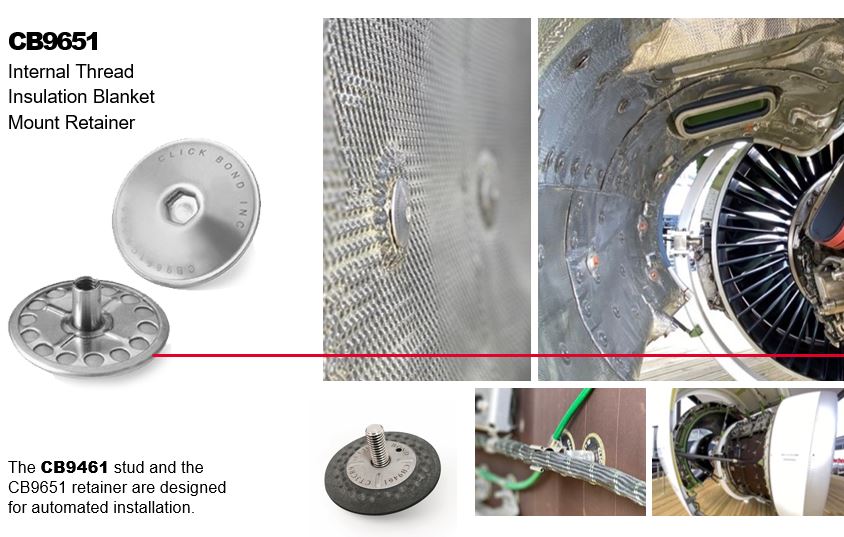

CB9651 Internal-Thread Insulation Blanket Mount Retainer
Adhesive-Bonded Thermal-Insulating Fasteners For Quick, Easy Installation in Nacelle Applications
CB9651 DETAILS: Retainer offered in lengths from 0.20" to 1.00". Diameter: 1.25". Thread size .1900-32 accepts .1900-32 UNJF-3A stud. Hex socket 0.25". Retainer is A-286 stainless steel. Optional ribbed surface. Silver plate option. See product details.

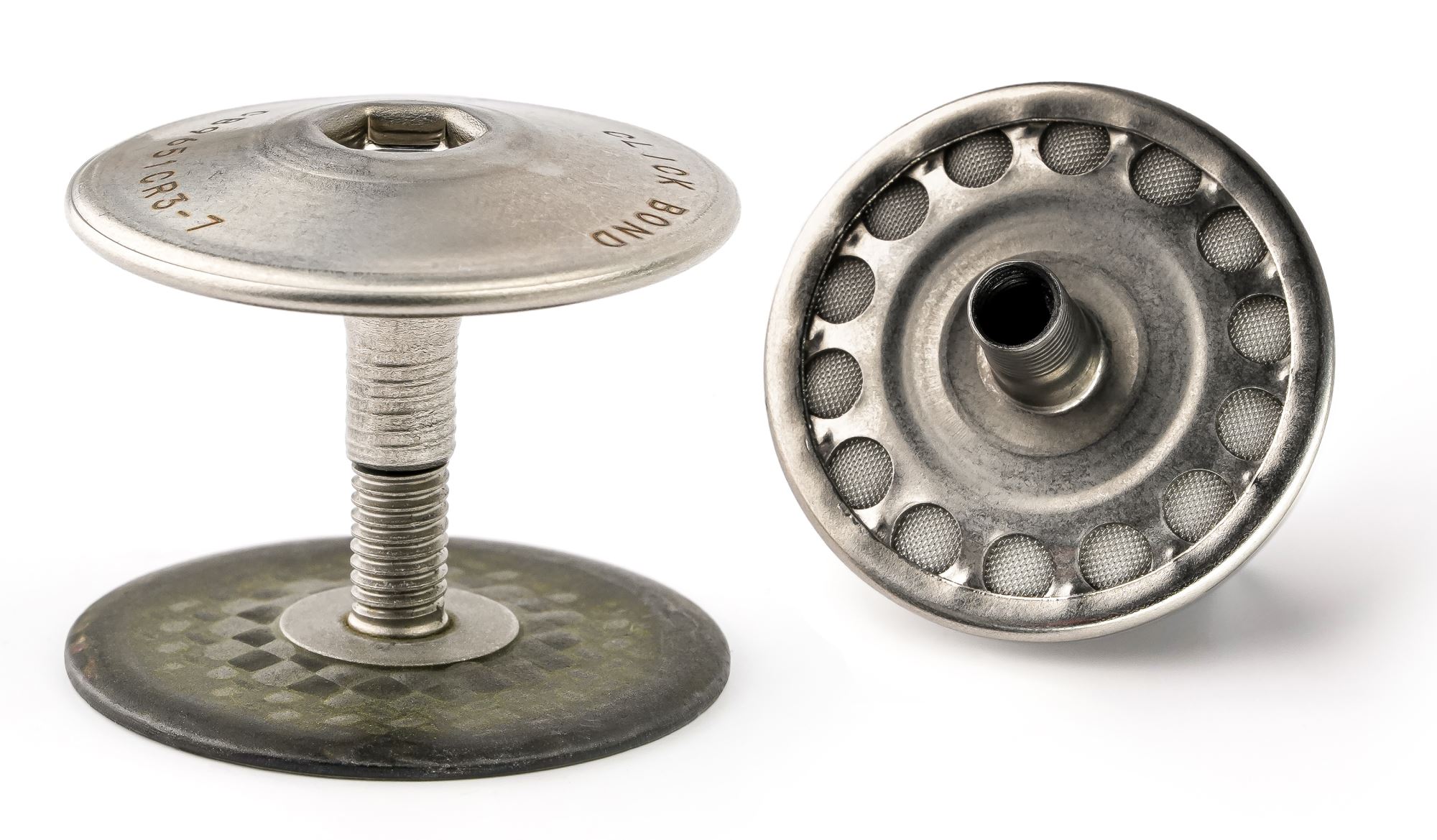

CB9461 Composite Base Stud
This thermally insulated stud is used with receptacles to secure insulation blankets. See product details.
SIZES: Stud offered in lengths from 0.31" to 2.00". Diameter: 1.25" with optional trimmed base 0.75". Reduced area base on stud insert. Thread size .1900-32 per AS8879.
MATERIALS: Washer and stud is A-286 stainless steel. Composite baseplate offered in Carbon/Epoxy and Glass/Epoxy.
FEATURES: Optional vent hole in baseplate. Optional locating pin. Low profile fixture available. Assorted configurations offered, refer to specification.
