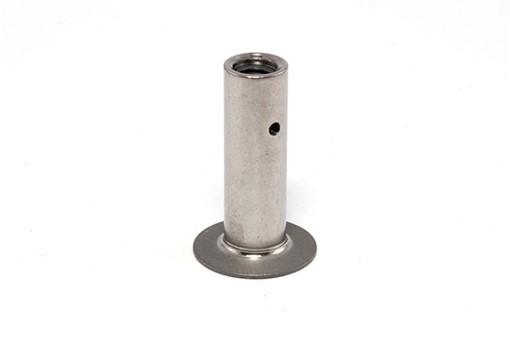

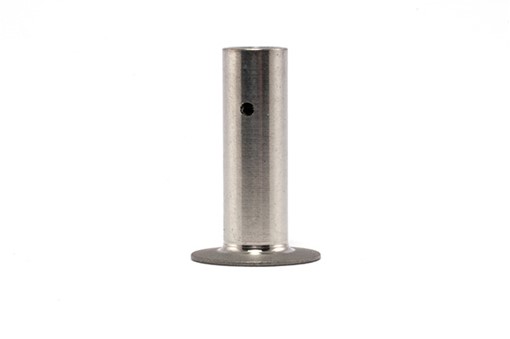

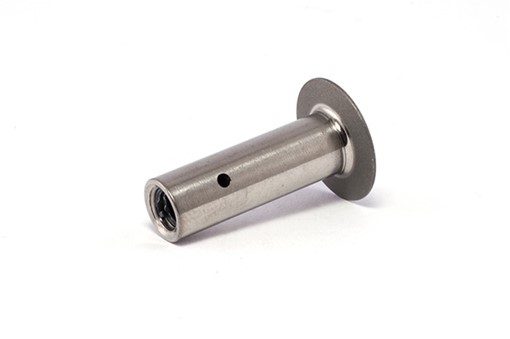

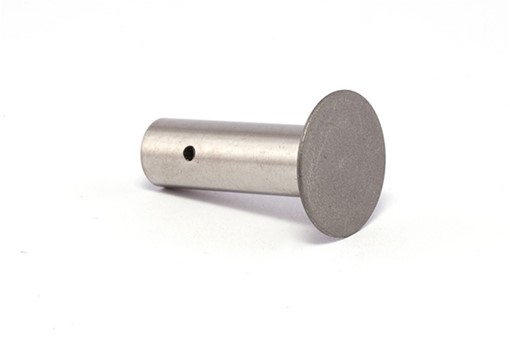

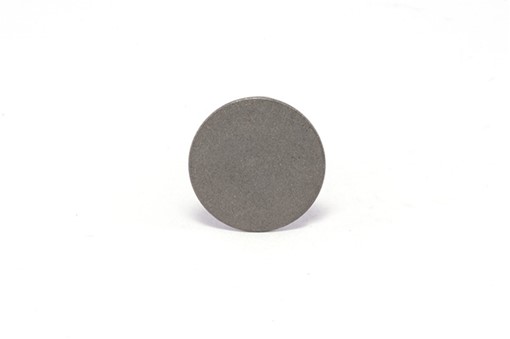

SIZES: Imperial thread sizes from 6-32 (.138"-32) to 10-32 (.190"-32), and metric thread sizes from M3 to M5. Baseplate diameter 0.62". Standoff lengths from 0.375" through 1.500", and metric lengths from 10,0mm through 35,0mm.
MATERIALS: Standoff is Aluminum, Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, or Titanium. Optional epoxy primer or film primer on bonding surface.
FEATURES: Locking thread provided by MS21209 or NAS1130 thread insert.
Standoff permits clamped attachment of systems and provides separation from structure. Supplied with disposable installation fixture.
