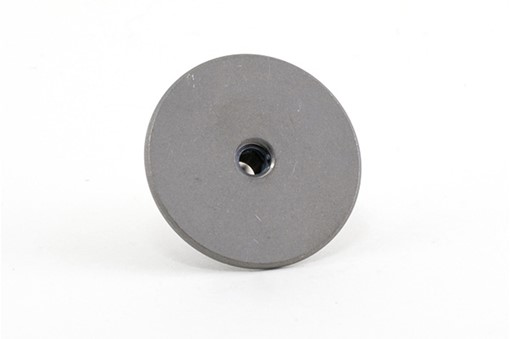

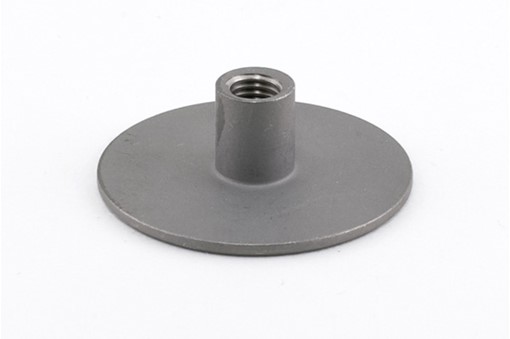

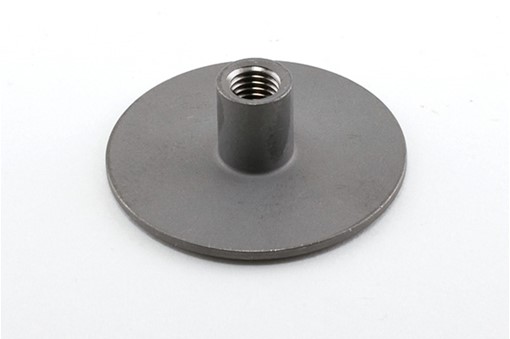

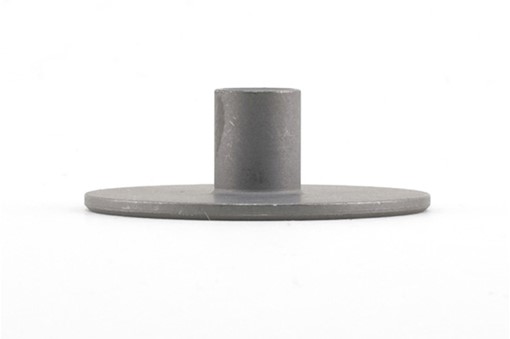

CB9084 - Locking Threaded Bushing, Large Flange

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial fine thread sizes from 10-32 (.190"-32) to 5/16-24 (.312"-24), Imperial coarse thread sizes 1/4-20 (.250"-20) and 5/16-18 (.312"-18), and metric thread sizes from M5 to M8. 1.25" Flange Diameter.

MATERIALS: Anodized Aluminum, 300 Series Stainless Steel, and A-286 Stainless Steel.

FEATURES: Standard 1.25" diameter flange, with optional .75" x 1.25" trimmed flange. Locking thread incorporates MS21209 compliant insert, meets tensile strength requirements for NASM25027 shear nuts, and accepts screws with MIL-S-8879 UNJ threadform.

Product Overview

Add to Favorites

Threaded bushing with locking thread enables localized reinforcement of and attachment to panel structure. Supplied with disposable installation fixture. 1.25" Flange Diameter.

SUPPORT DOCUMENTS

Applications

  • Brackets & Clamps
  • Decking & Floorboards
  • Fairings
  • Interiors
  • Panels
  • Systems Attachment

Don’t see what you need?

Our engineers are ready to pioneer advanced fastening solutions to solve your design challenges and enable your ideas to take off. Contact our Sales Team to explore customized designs as well as the hundreds of iterative products not shown in our online product database.
