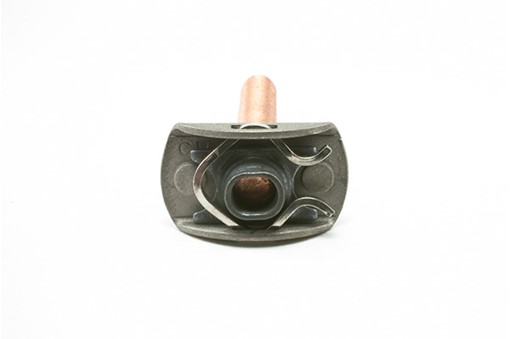

CB6309 - Two-Lug FLEXBOND Sleeved Nutplate

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial thread sizes from 10-32 (.190"-32) and 1/4-28 (.250"-28). Multiple standard counterbores from -1 through -6 available.

MATERIALS: Standard baseplate is A-286 Stainless Steel, with Aluminum and Anodized Aluminum optionally available. Nut retention clip is 302 Stainless Steel or ARMCO 18-2 MN Stainless Steel. Standard nut element is A-286 Stainless Steel with dry film lubrication. Alternatively, cadmium or silver-plated nut available. Sleeve is A-286 Stainless Steel with optional cadmium or IVD aluminum plating. Optional epoxy primer on bonding surface of baseplate.

FEATURES: Thread lock performance and nutplate strength per NASM25027 and thread form compliant with AS8879. Non-locking nut element optionally available. For oversize hole repair, use CB6349 - FLEXBOND Nutplate, Two Lug, Oversize.

Product Overview

Add to Favorites

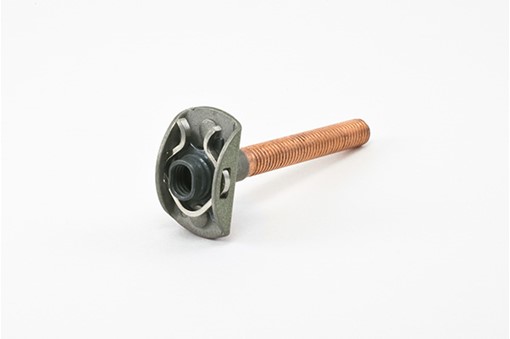

Two-lug FLEXBOND sleeved nutplate features fatigue life enhancing cold worked sleeve. Disposable mandrel expands sleeve during installation, leaving fastener hole in radial compression, providing improved fatigue properties. Installation requires CB750 series installation tool. Contact Click Bond Sales for more information.

SUPPORT DOCUMENTS

Applications

  • Decking & Floorboards
  • Equipment Attachment
  • Fairings
  • Fuel & Fluid Tanks
  • Interiors
  • Panels
  • Pressurized Vessels
  • Structural Components
  • Systems Attachment
