CB6012 - Two-Nut Channel Nutplate

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial thread sizes from 8-32 (.164"-32) to 5/16-24 (.312"-24) and nut spacing from 0.625" to 1.250". Metric thread sizes from M4 to M8 and nut spacing from 16,0mm to 32,0mm.

MATERIALS: Baseplate is A-286 Stainless Steel. Nut retention clip is 302 Stainless Steel or ARMCO 18-2 MN Stainless Steel. Standard nut element is A-286 Stainless Steel with dry film lubrication. Alternatively, cadmium or silver-plated nut available. Optional epoxy primer on bonding surface of baseplate.

FEATURES: Thread lock performance and nutplate strength per NASM25027 or ISO5858 and thread form compliant with AS8879 or ISO5855. Non-locking nut elements optionally available.

Product Overview

Add to Favorites

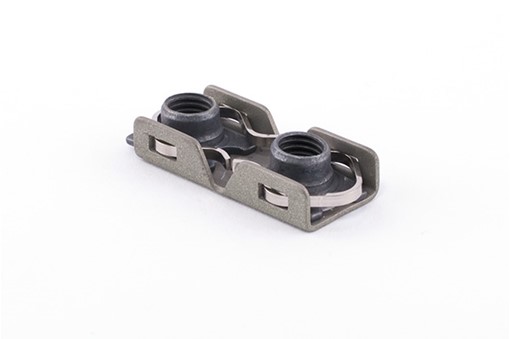

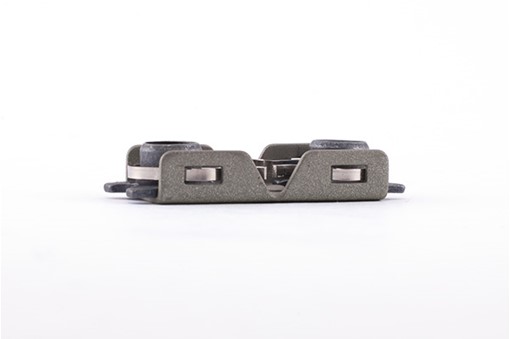

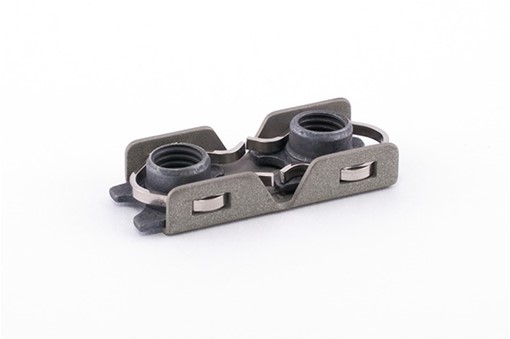

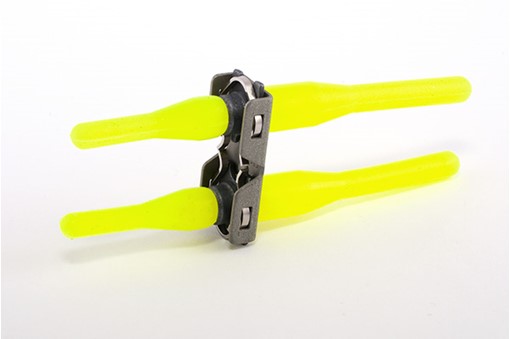

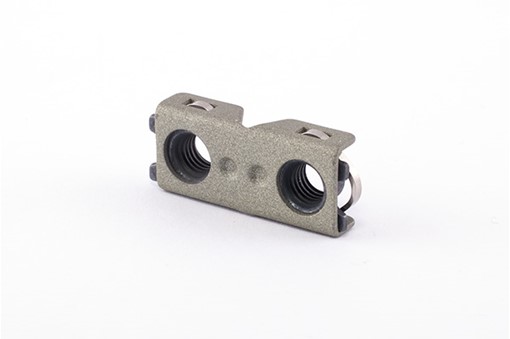

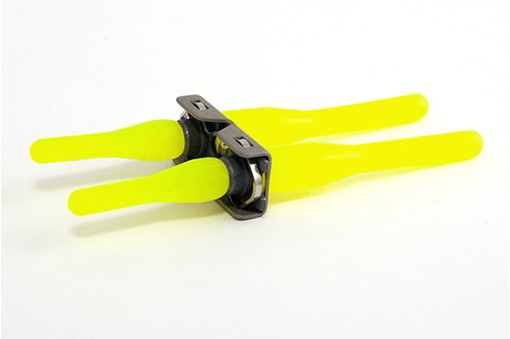

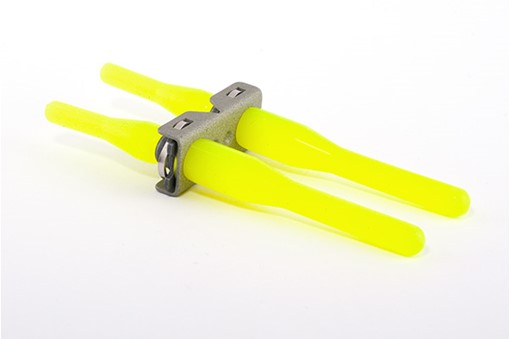

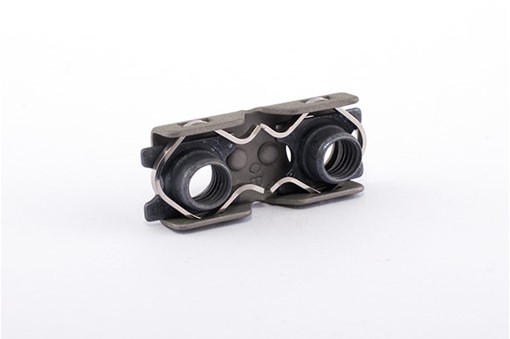

Two-element nutplate channel with replaceable clip-retained nut elements. Supplied with integral elastic installation fixtures. Fixtures simplify nutplate installation by providing bondline clamp-up and maintenance of concentricity with the fastener holes, ensuring full availability of nut float and protection of threads from adhesive.


SUPPORT DOCUMENTS

Applications

  • Decking & Floorboards
  • Equipment Attachment
  • Fairings
  • Fuel & Fluid Tanks
  • Interiors
  • Panels
  • Pressurized Vessels
  • Structural Components
  • Systems Attachment
