CB2011 - One-Lug Bracket-Retained Nutplate

  • Air
  • Sea
  • Land
  • Industrial

Details

SIZES: Imperial thread sizes 8-32 (.164"-32) and 10-32 (.190"-32) and metric thread sizes M4 and M5. Multiple standard counterbores from -1 through -6.

MATERIALS: Baseplate is 304 or A-286 Stainless Steel, Aluminum, or Anodized Aluminum. Nut element is A-286 Stainless Steel with dry film lubrication. Optional epoxy primer on bonding surface of baseplate.

FEATURES: Thread lock performance and nut strength per NASM25027 and thread form compliant with AS8879 or ISO5855. Non-locking nut element optionally available.

NOTE: STEEL NUT OPTION INACTIVE FOR NEW DESIGN / PROCUREMENT

Product Overview

Add to Favorites

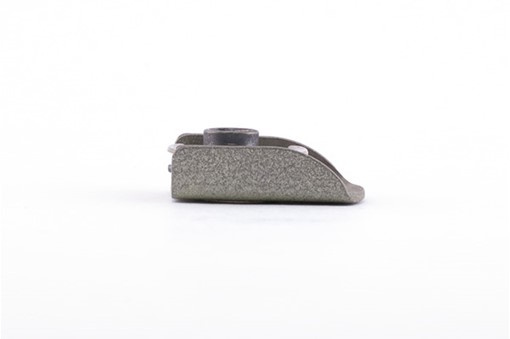

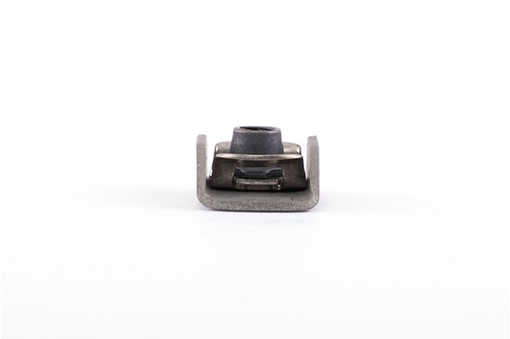

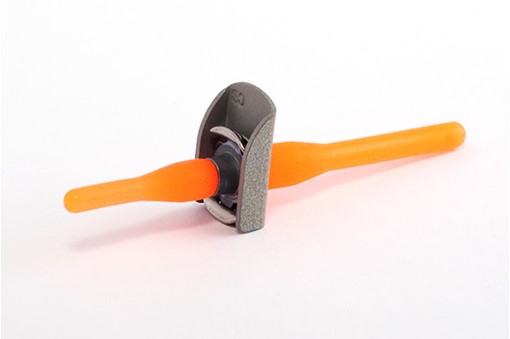

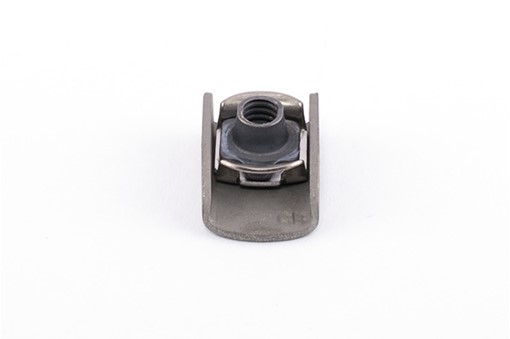

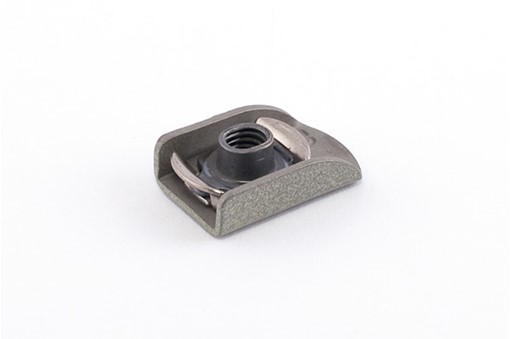

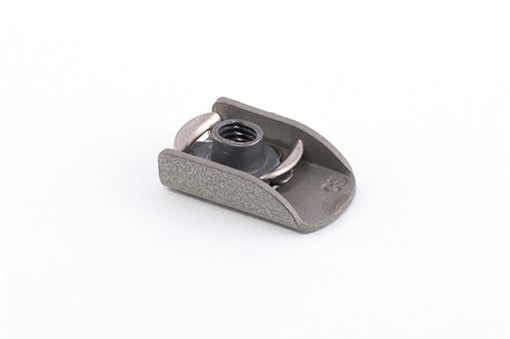

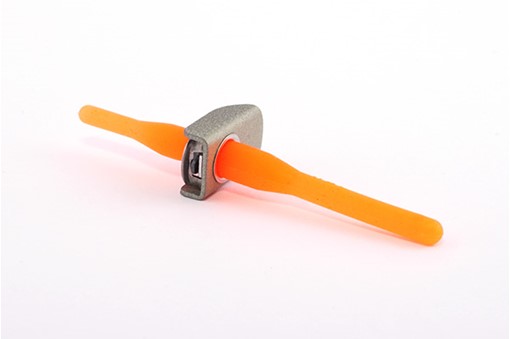

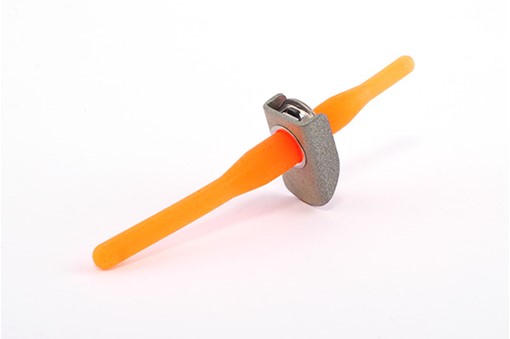

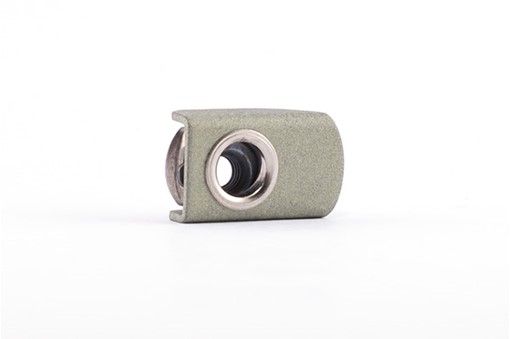

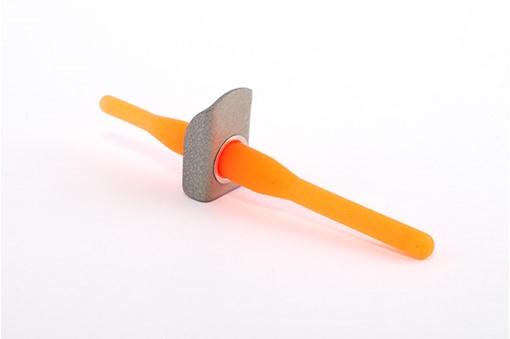

One-lug nutplate with bracket-retained nut element for FOD-critical applications where nut replaceability is desired but nut element retainer clips are not permitted. Supplied with integral elastic installation fixture. Fixture simplifies nutplate installation by providing bondline clamp-up and maintenance of concentricity with the fastener hole, ensuring full availability of nut float and protection of threads from adhesive.
