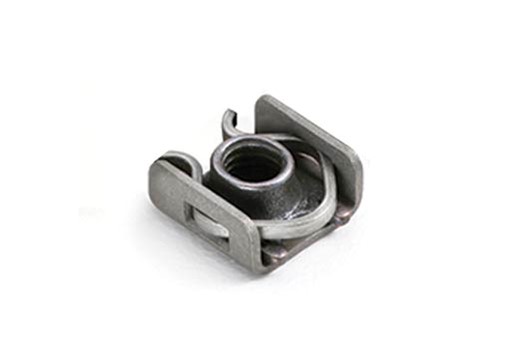

CB6003 - No-Lug Clip-Retained Nutplate

  • Air
  • Sea
  • Land
  • Industrial

Details

SIZES: Imperial thread sizes from 8-32 (.164"-32) to 1/2-20 (.500"-20) and metric thread sizes from M4 to M10.  Multiple standard counterbores from -1 through -6 available in most diameters.

MATERIALS: Standard baseplate is A-286 Stainless Steel. Nut retention clip is 302 Stainless Steel or ARMCO 18-2 MN Stainless Steel. Standard nut element is A-286 Stainless Steel with dry film lubrication. Alternatively, silver-plated nut available. Optional epoxy primer on bonding surface of baseplate.

FEATURES: Thread lock performance and nutplate strength per NASM25027 or ISO5858 and thread form compliant with AS8879 or ISO5855.

Product Overview

Add to Favorites

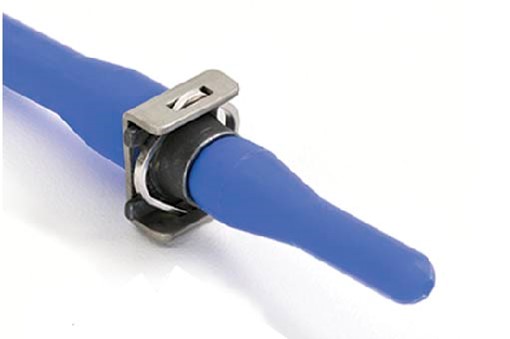

No-lug nutplate with replaceable clip-retained nut element, suitable for general applications. Supplied with integral elastic installation fixture. Fixture simplifies nutplate installation by providing bondline clamp-up and maintenance of concentricity with the fastener hole, ensuring full availability of nut float and protection of threads from adhesive.

SUPPORT DOCUMENTS

Applications

  • Decking & Floorboards
  • Equipment Attachment
  • Fairings
  • Fuel & Fluid Tanks
  • Interiors
  • Panels
  • Pressurized Vessels
  • Structural Components
  • Systems Attachment

Don’t see what you need?

Our engineers are ready to pioneer advanced fastening solutions to solve your design challenges and enable your ideas to take off. Contact our Sales Team to explore customized designs as well as the hundreds of iterative products not shown in our online product database.
