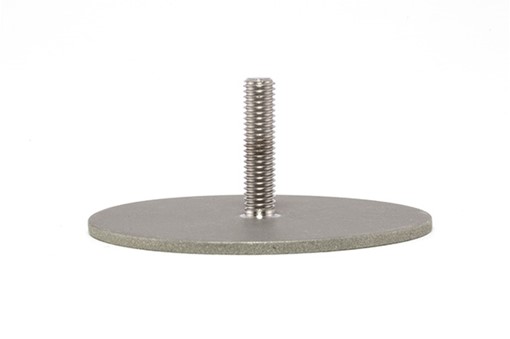

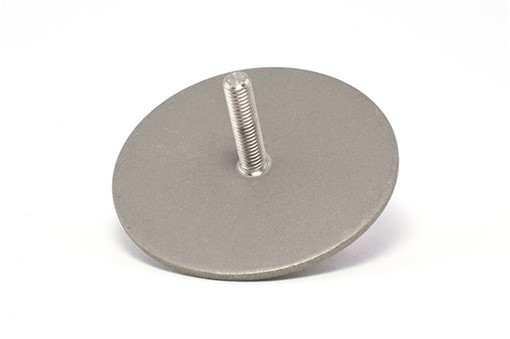

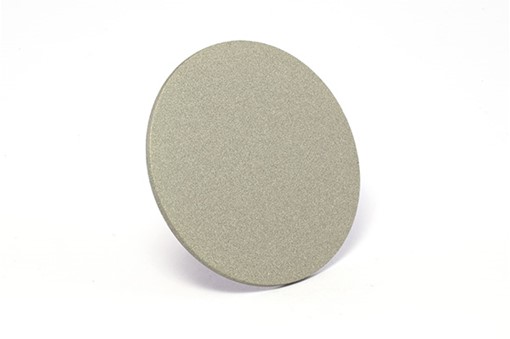

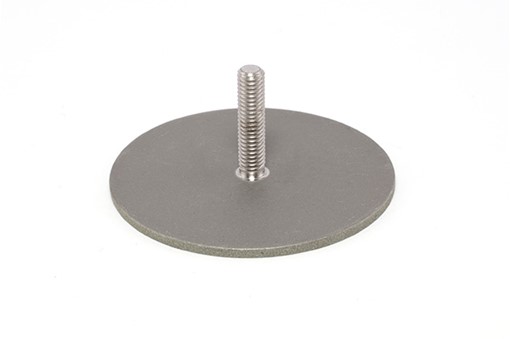

CB3200 - Large Base Stud

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial fine thread sizes from 6-32 (.138"-32) to 1/2-20 (.500"-20), Imperial coarse thread sizes from 10-24 (.250"-24) to 1/2-13 (.500"-13). Standard 2.00" diameter round baseplate, with optional 1.25" X 2.00" trimmed baseplate available. Stud lengths from 0.500" through 2.000".

MATERIALS: Stud is Aluminum, Anodized Aluminum, 300 Series Stainless Steel, 316 Stainless Steel, or A-286 CRES Stainless Steel. Optional epoxy primer on bonding surface.

Product Overview

Add to Favorites

Stud permits clamped attachment of systems to structure or securing of enclosures or other modular equipment. Supplied with disposable installation fixture.

SUPPORT DOCUMENTS

Applications

  • Cables & Wiring
  • Decking & Floorboards
  • Equipment Attachment
  • Insulation Blankets
  • Interiors
  • Lighting & Sensors
  • Panels
  • Structural Components
  • Systems Attachment
  • Tubing & Hoses
