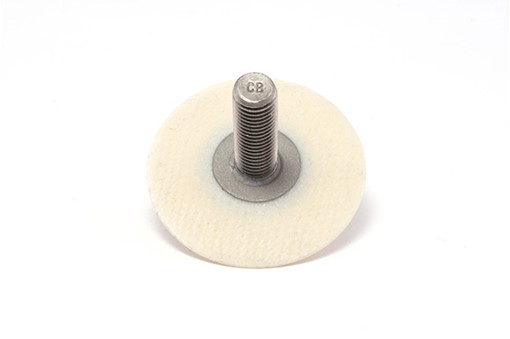

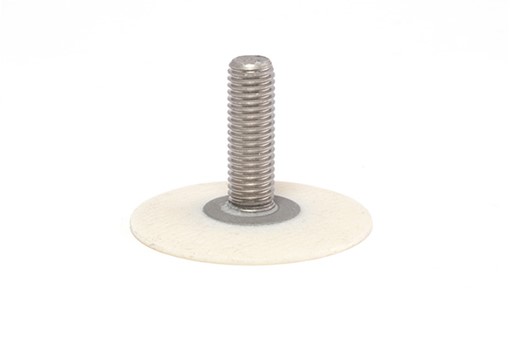

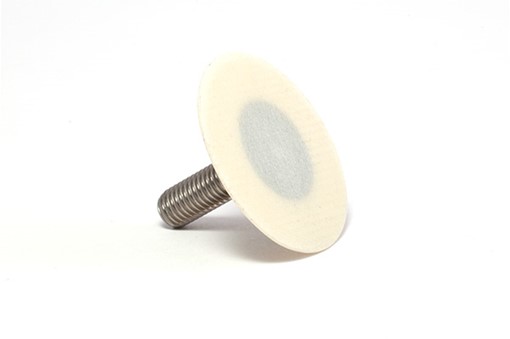

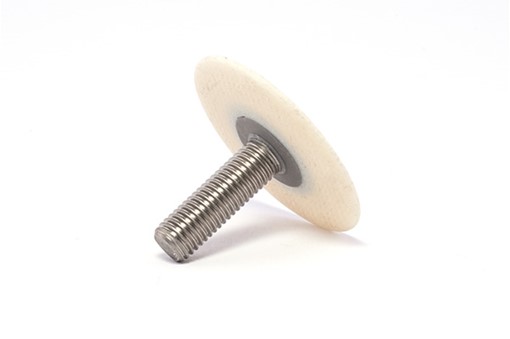

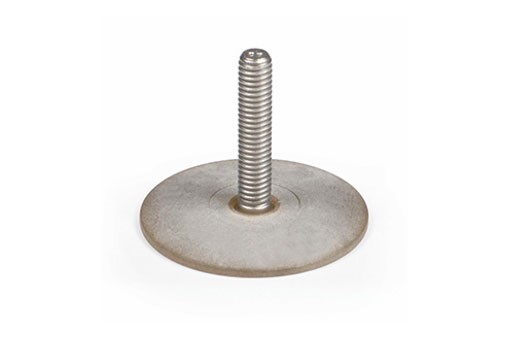

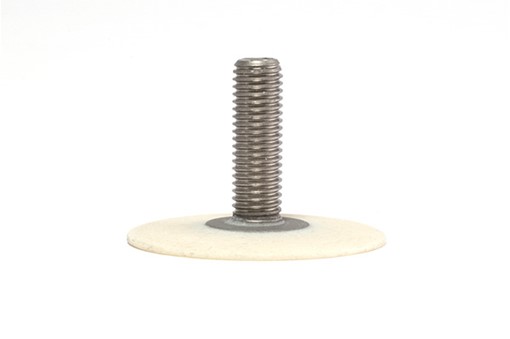

CB4000 - Composite Base Stud

  • Air
  • Sea
  • Land
  • Industrial

Details

SIZES: Imperial thread sizes from 6-32 (.138"-32) to 5/16-24 (.312"-24) and metric thread sizes from M3 to M8. Standard 1.25" diameter round baseplate, with optional 0.75" X 1.25" trimmed baseplate available. Stud lengths from 0.250" (6,0mm) through 2.000" (35,0mm)

MATERIALS: Baseplate materials include Carbon/Epoxy, Glass/Epoxy, and Glass and Carbon filled PEI Thermoplastic. Stud materials include Aluminum, Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, or Titanium. Optional epoxy primer on bonding surface.

Product Overview

Add to Favorites

Stud permits clamped attachment of systems to structure or securing of enclosures or other modular equipment. Supplied with disposable installation fixture.

SUPPORT DOCUMENTS

Applications

  • Cables & Wiring
  • Decking & Floorboards
  • Equipment Attachment
  • Insulation Blankets
  • Interiors
  • Lighting & Sensors
  • Panels
  • Structural Components
  • Systems Attachment
  • Tubing & Hoses
