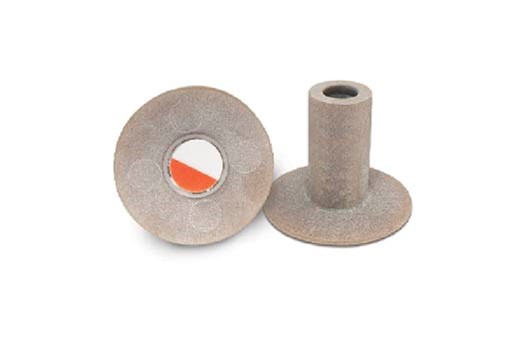

CB4516 - Composite-Base Locking-Thread Standoff

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial thread sizes from 8-32 (.164"-32) to 1/4-28 (.250"-28). Standard baseplate diameter 1.25", with optional 0.75" X 1.25" trimmed baseplate. Standoff lengths from 0.437" through 2.000".

MATERIALS: Standoff material is Glass-filled PEI Thermoplastic. Nut is A-286 Stainless Steel with dry film lubrication. Optional epoxy primer on bonding surface.

FEATURES: Locking thread provided by NAMS25027 compliant nut element.

Product Overview

Add to Favorites

Composite standoff permits clamped attachment of systems and provides separation from structure. Metallic locking nut element delivers thread lock and durability. Incorporates new design with reduced footprint internal installation fixture.

SUPPORT DOCUMENTS

Applications

  • Cables & Wiring
  • Decking & Floorboards
  • Equipment Attachment
  • Insulation Blankets
  • Interiors
  • Lighting & Sensors
  • Panels
  • Structural Components
  • Systems Attachment
  • Tubing & Hoses
