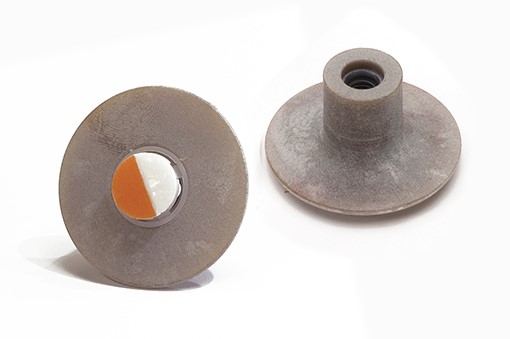

CB4512 - Composite-Base Locking-Thread Standoff

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial thread size 10-32 (.190"-32). Standard baseplate diameter 1.25", with optional 0.75" X 1.25" trimmed baseplate. Standoff lengths from 0.500" through 1.375".

MATERIALS: Standoff material is Glass-filled PEI, PEEK, or PEKK Thermoplastic. Thread insert material A-286 CRES with dri-film lube. Options include epoxy primer on bonding surface, inspection hole, and/or locating pin.

FEATURES: Locking thread provided by NAMS25027 compliant nut element.

Product Overview

Add to Favorites

Composite standoff permits clamped attachment of systems and provides separation from structure. Metallic locking nut element delivers thread lock and durability. Incorporates new design with reduced footprint internal installation fixture.

SUPPORT DOCUMENTS

Applications

  • Cables & Wiring
  • Decking & Floorboards
  • Equipment Attachment
  • Insulation Blankets
  • Interiors
  • Lighting & Sensors
  • Panels
  • Structural Components
  • Systems Attachment
  • Tubing & Hoses
