CB9061 - Spacer Bushing, Locking Thread

  • Air
  • Sea
  • Land
  • Industrial

Details

SIZES: Imperial fine thread sizes 6-32 (.138"-32) to 3/8-24 (.375"-24), Imperial coarse thread sizes 10-24 (.190"-24) and 1/4-20 (.250"-20).

MATERIALS: Aluminum, Anodized Aluminum, 300 Series Stainless Steel, Titanium.

FEATURES: Standard 1.25" diameter flanges, with optional .75" x 1.25" trimmed flanges. Locking thread incorporates MS21209 compliant insert, meets tensile strength requirements for NASM25027 shear nuts, and accepts screws with MIL-S-8879 UNJ threadform. Optional non-locking thread available.

Product Overview

Add to Favorites

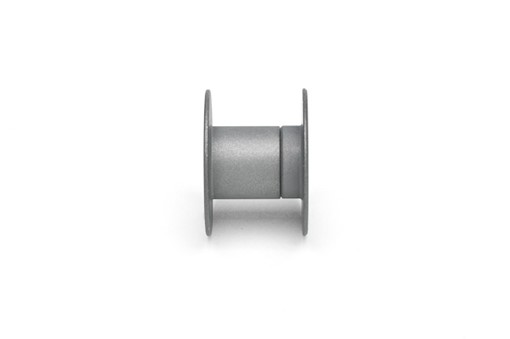

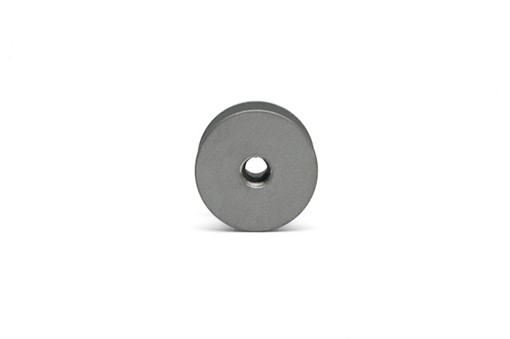

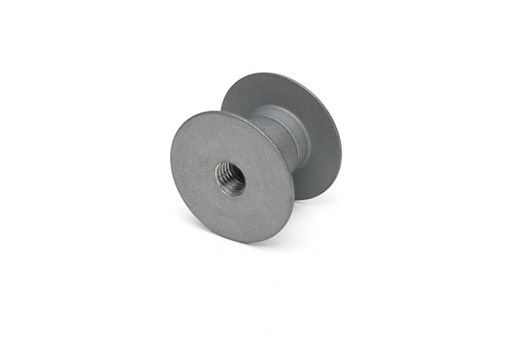

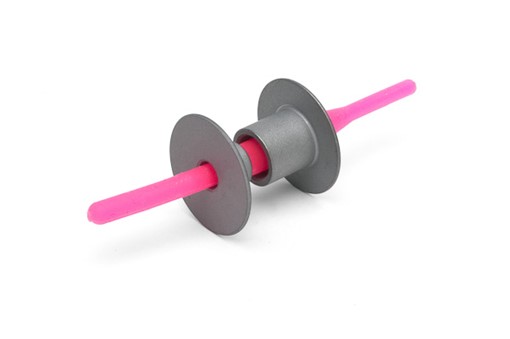

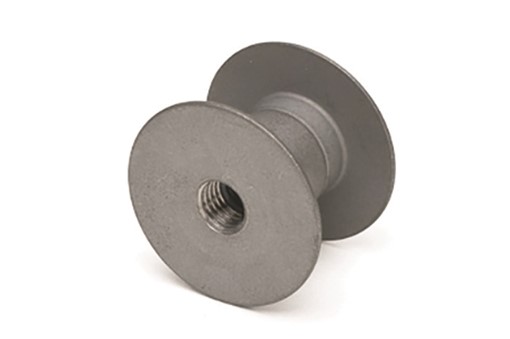

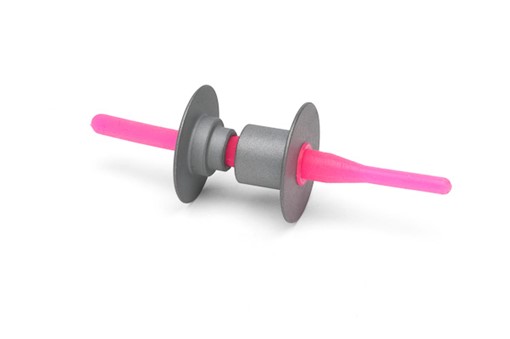

Spacer bushing with locking thread enables localized compressional reinforcement of and attachment to panel structure. Supplied with disposable elastic installation fixture. 1.25" Flange Diameter.

SUPPORT DOCUMENTS

Applications

  • Brackets & Clamps
  • Decking & Floorboards
  • Fairings
  • Interiors
  • Panels
  • Systems Attachment
